Auxx-Lift Storage Lift, 600 lbs
Pay Later with Shop
Secure Checkout
Description

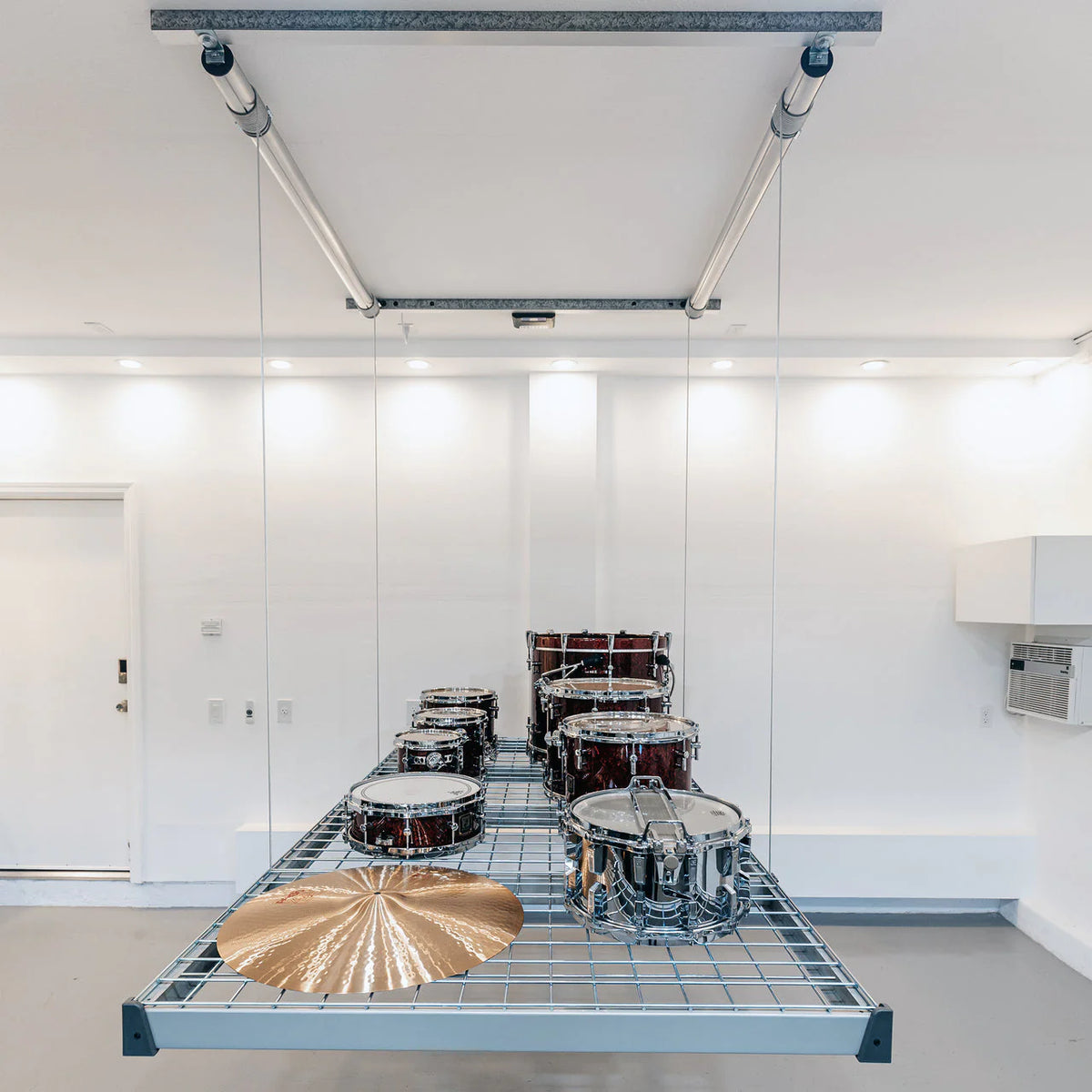

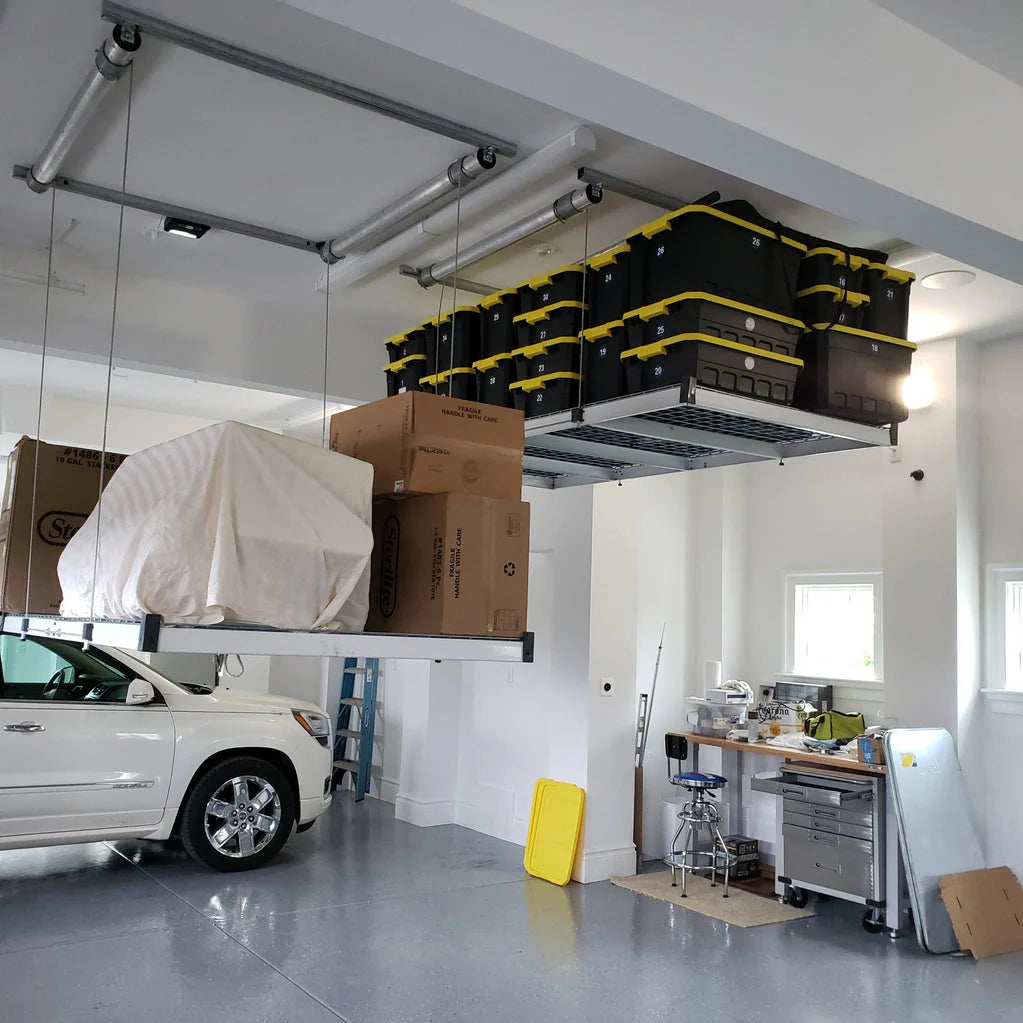

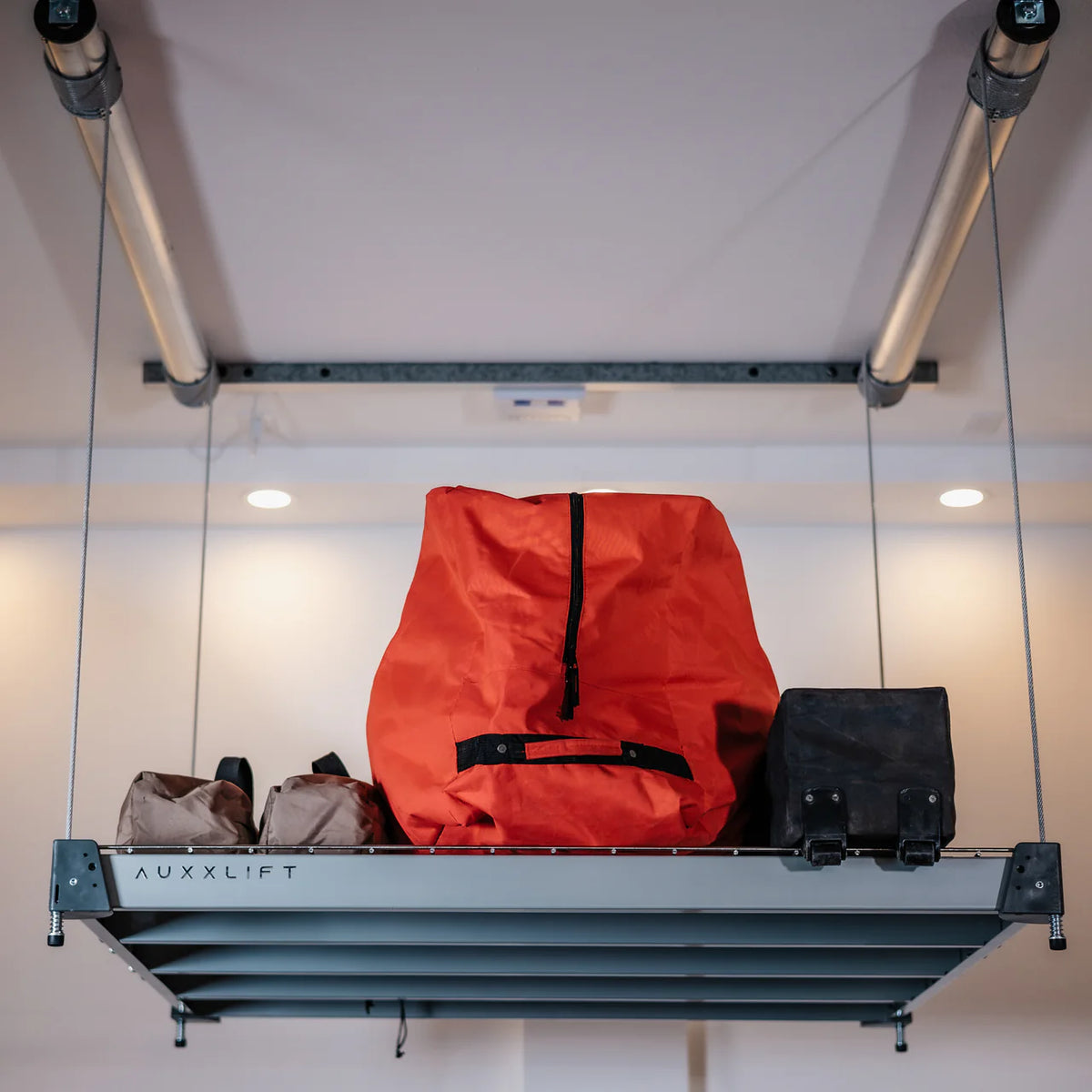

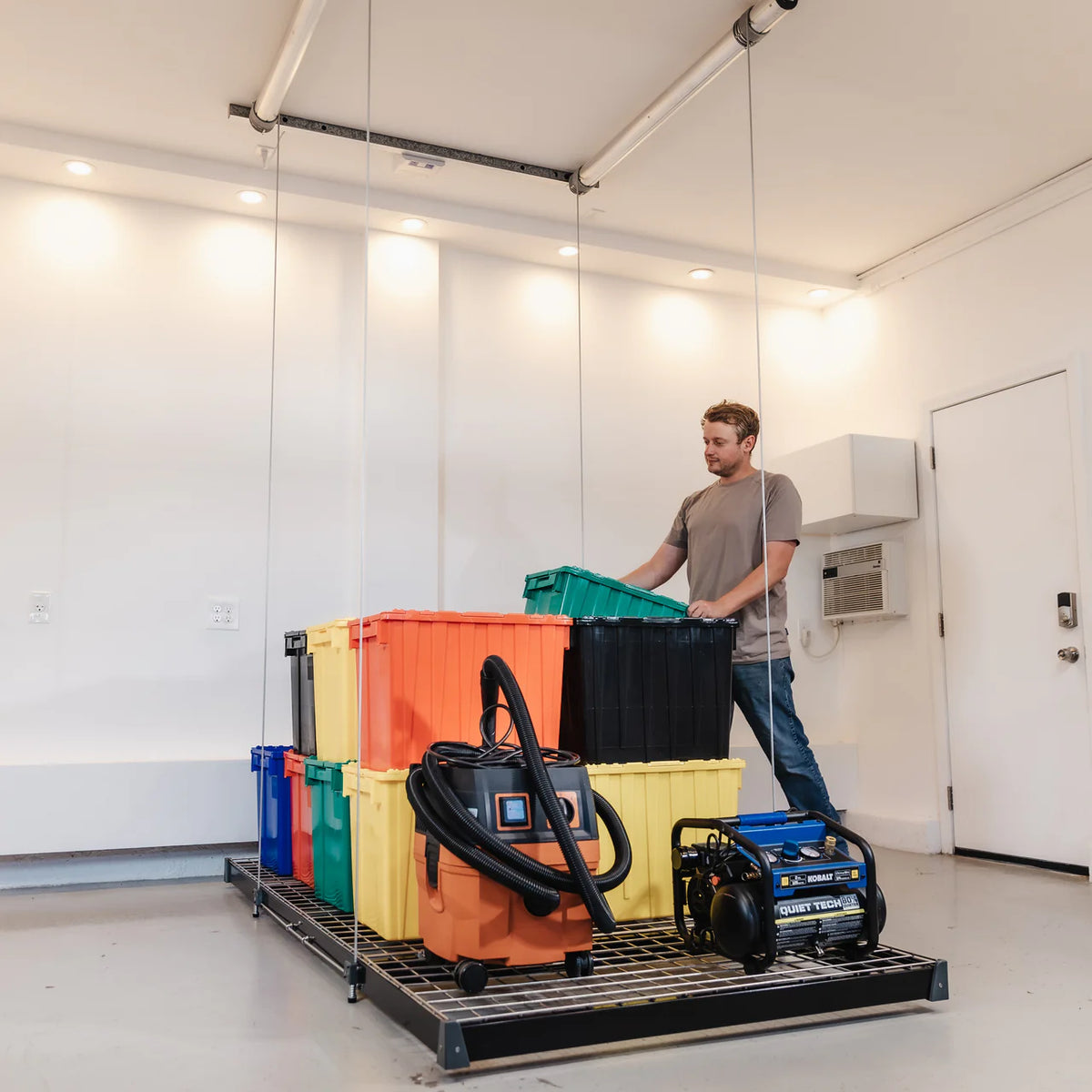

Push-button storage power — no ladder, no hassle
- Lift up to 800 lbs (4x4 version)
- Steel aircraft cables
- Assembled in USA – Uses SPAX® Fasteners
- Easy installation
- Built-in safety features – the only lift tested to UL-Standards
Product details
General specs
- Model: Auxx-Lift 1600
- Lifting Capacity: Up to 600 lbs
- Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
- Min. stored height: 8 in
- Speed: Avg. 30sec for 9' ceilings

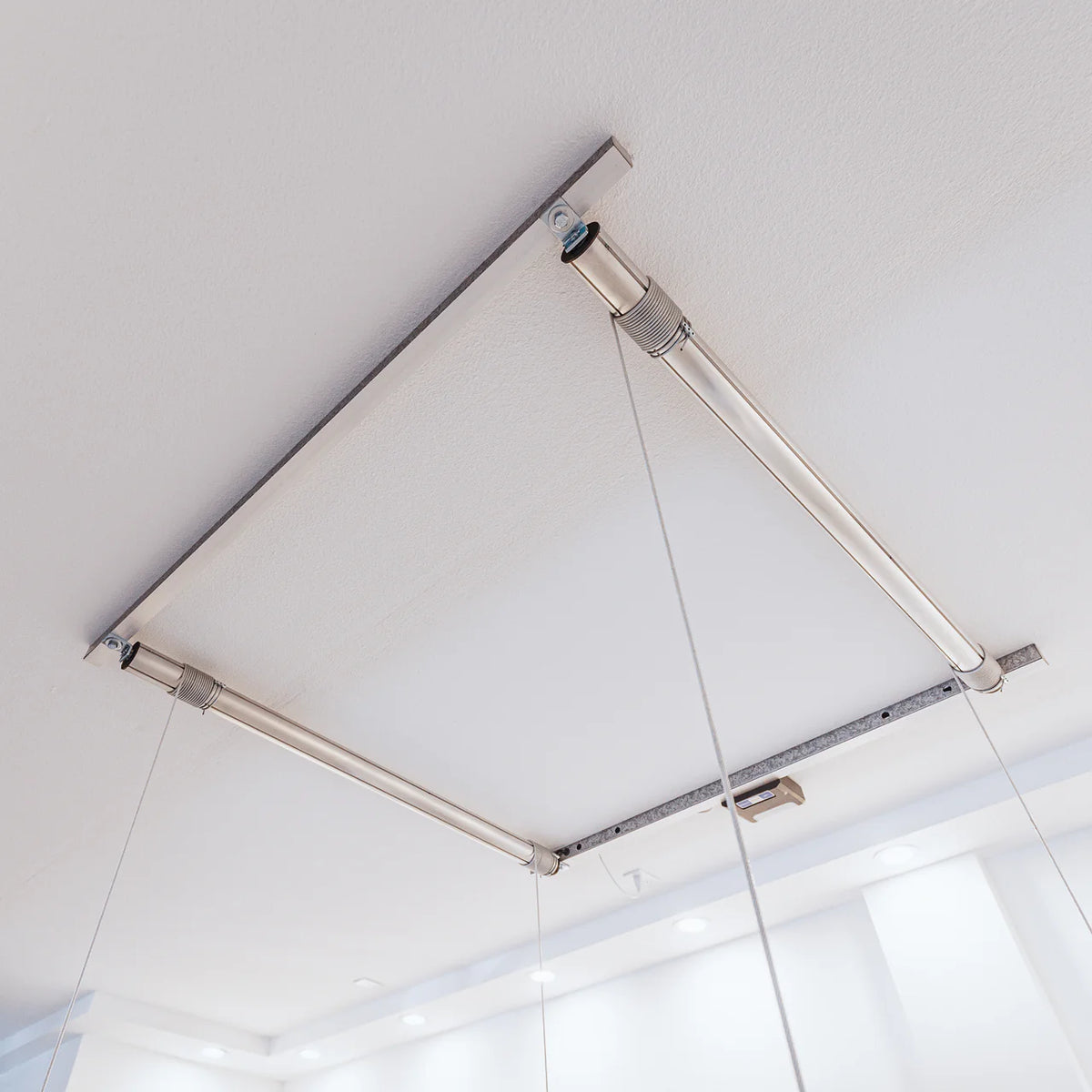

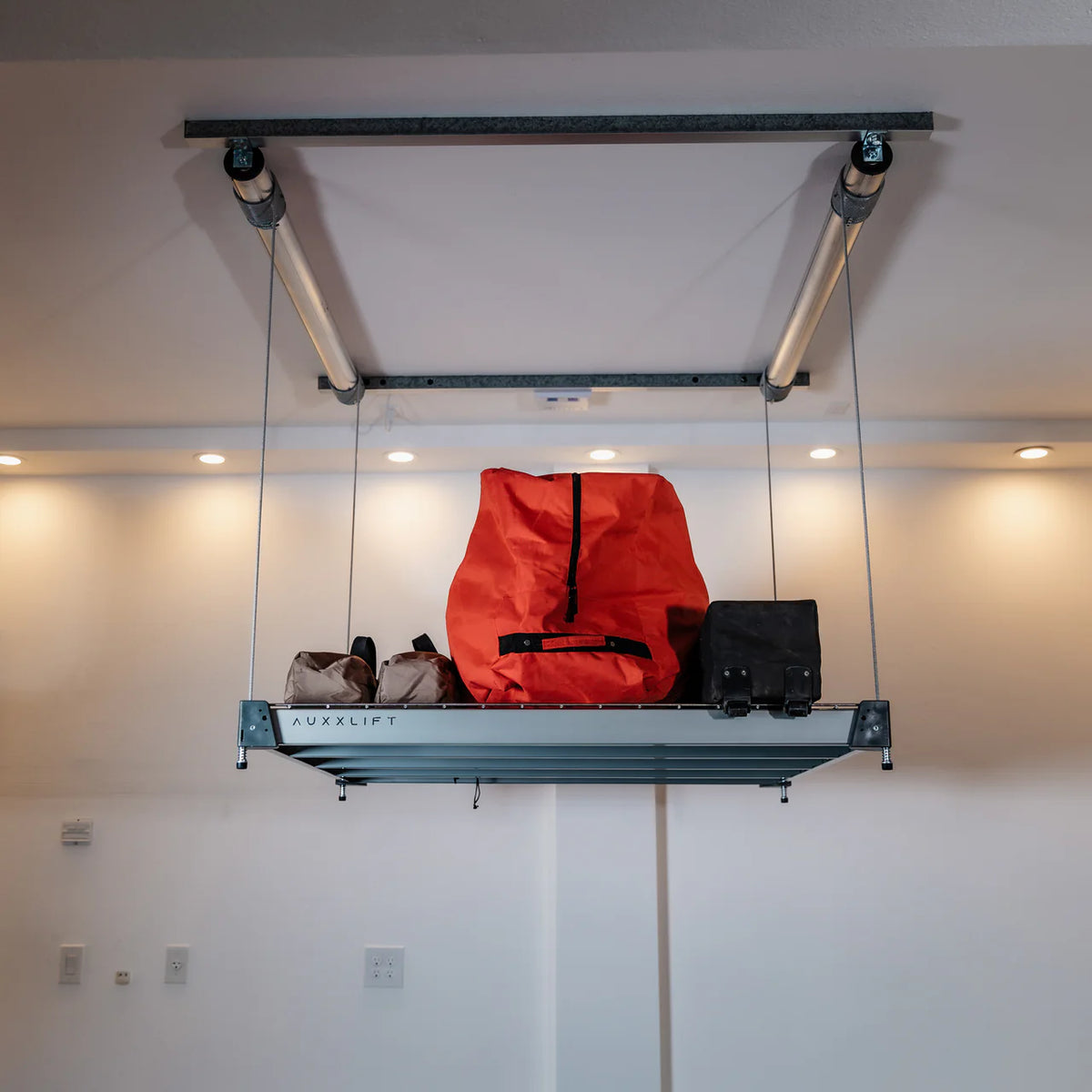

Ceiling Support
- Type: (2) 1 5/8" x 60" strut channel
- Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts

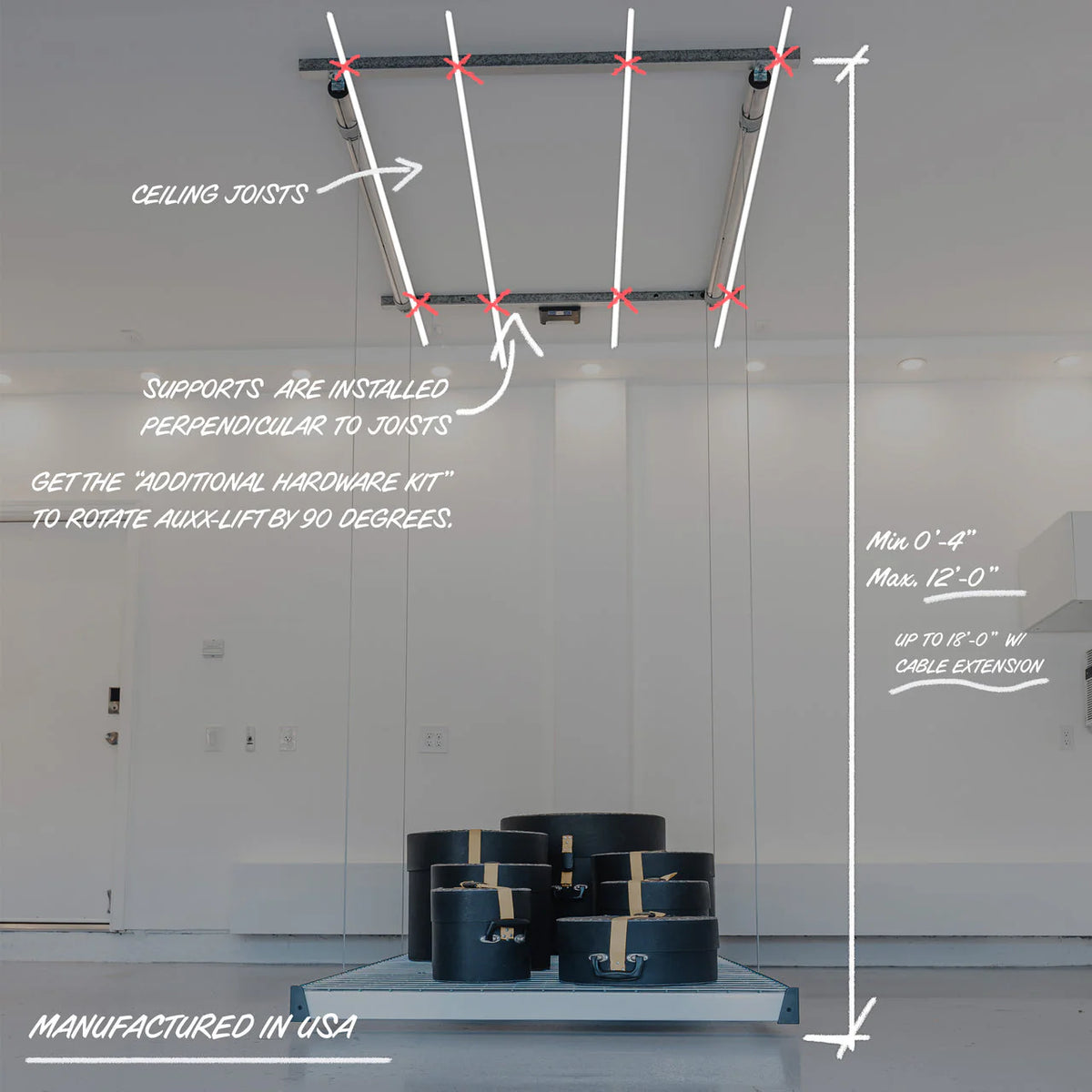

- Mounting Area: 5' x 5' over 3 joists/rafters

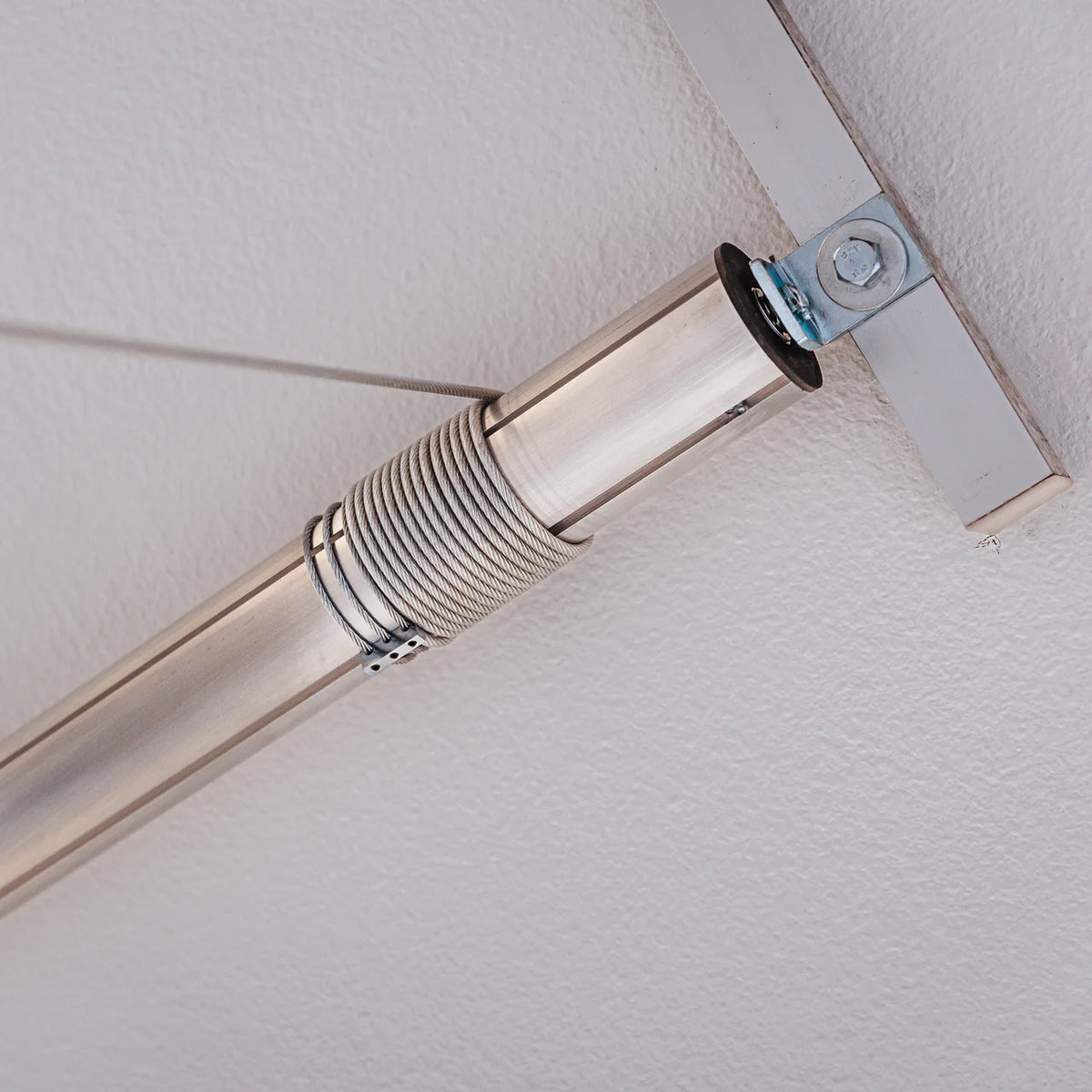

- Cable: 3/16” Vinyl-coated Steel 7x19
- Cable Strength: 4,200 lbs
Operating Requirements
- Switch Voltage: 110V / 120V
- Transmitter: 433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp (Standard household)

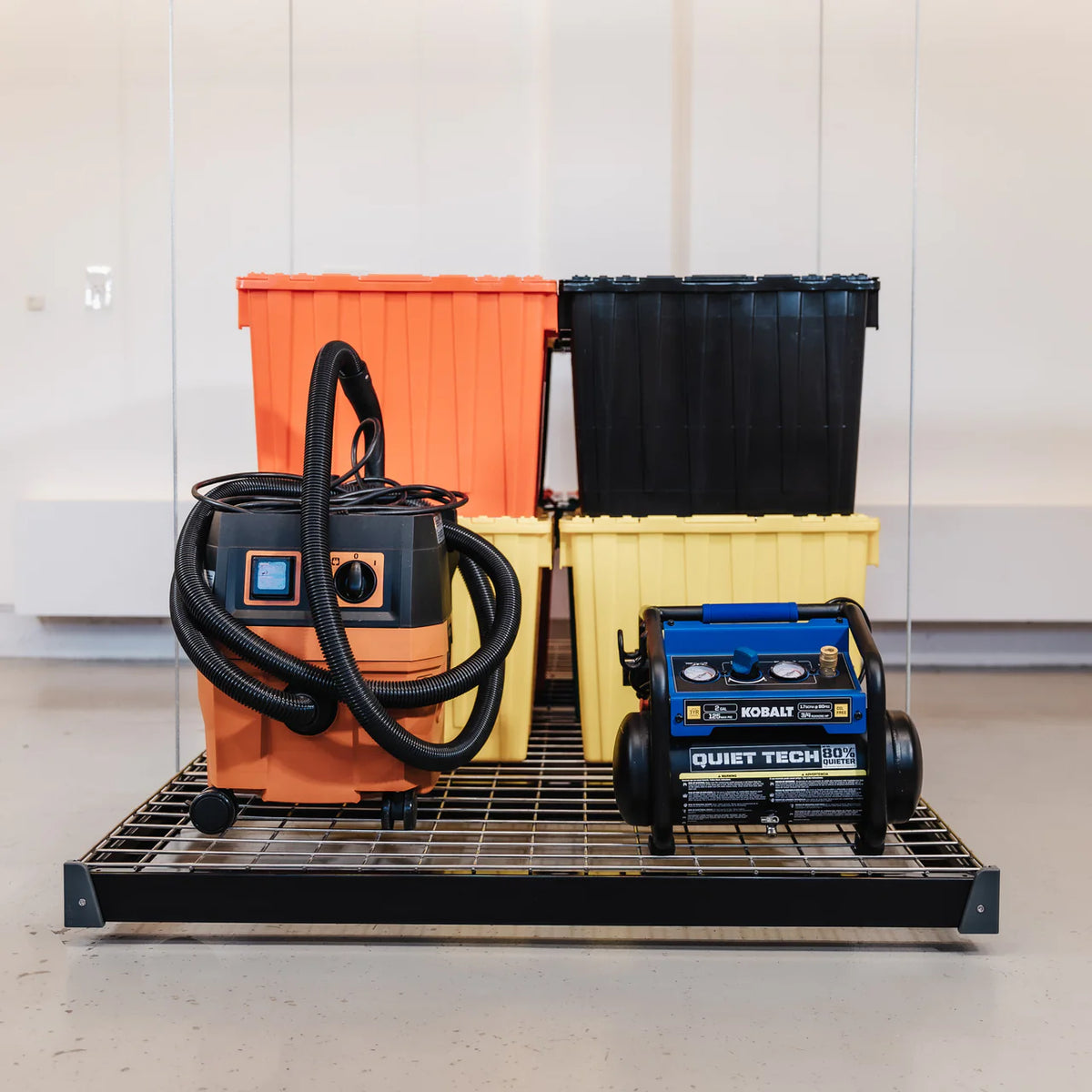

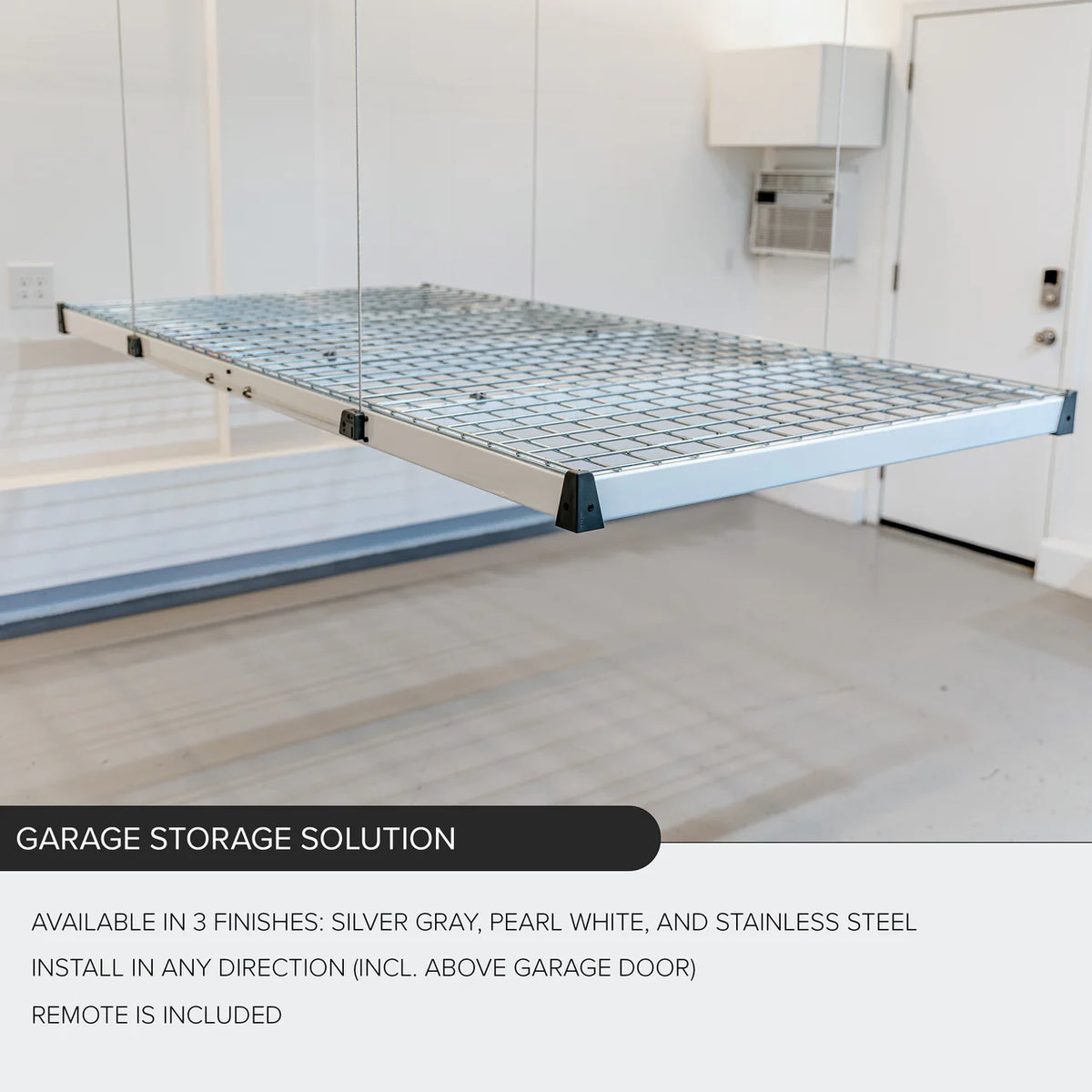

Platform Specs
- Thickness: 2.5 inches
- Support Frame: C-Channels (15gauge)
- Face material: 3 x 3 galv. Wire Mesh (4gauge)
Motors
- Type: IP44 (T-Motor)
- Rated Power: 680 W
- Rated Current: 6.0 A
- Voltage / Phase: 100-120V AC / Single
- Tube Diameter: 85mm (3-3/8 in)
- Motor speed: 11 rpm
- Duty Cycle @ Max. Capacity: 3 min on, 15 min off
Size and Weight
- Dimensions: 3ft x 6ft, 3ft x 8ft, 4ft x 6ft, 4ft x 8ft
- Weight: 128 lbs
What's in the box
- 2 Motors
- Controller
- Remote Control
- 2 C-Strut Channels
- Platform
- Mounting Hardware
Industry-leading
Wirelessly Controlled

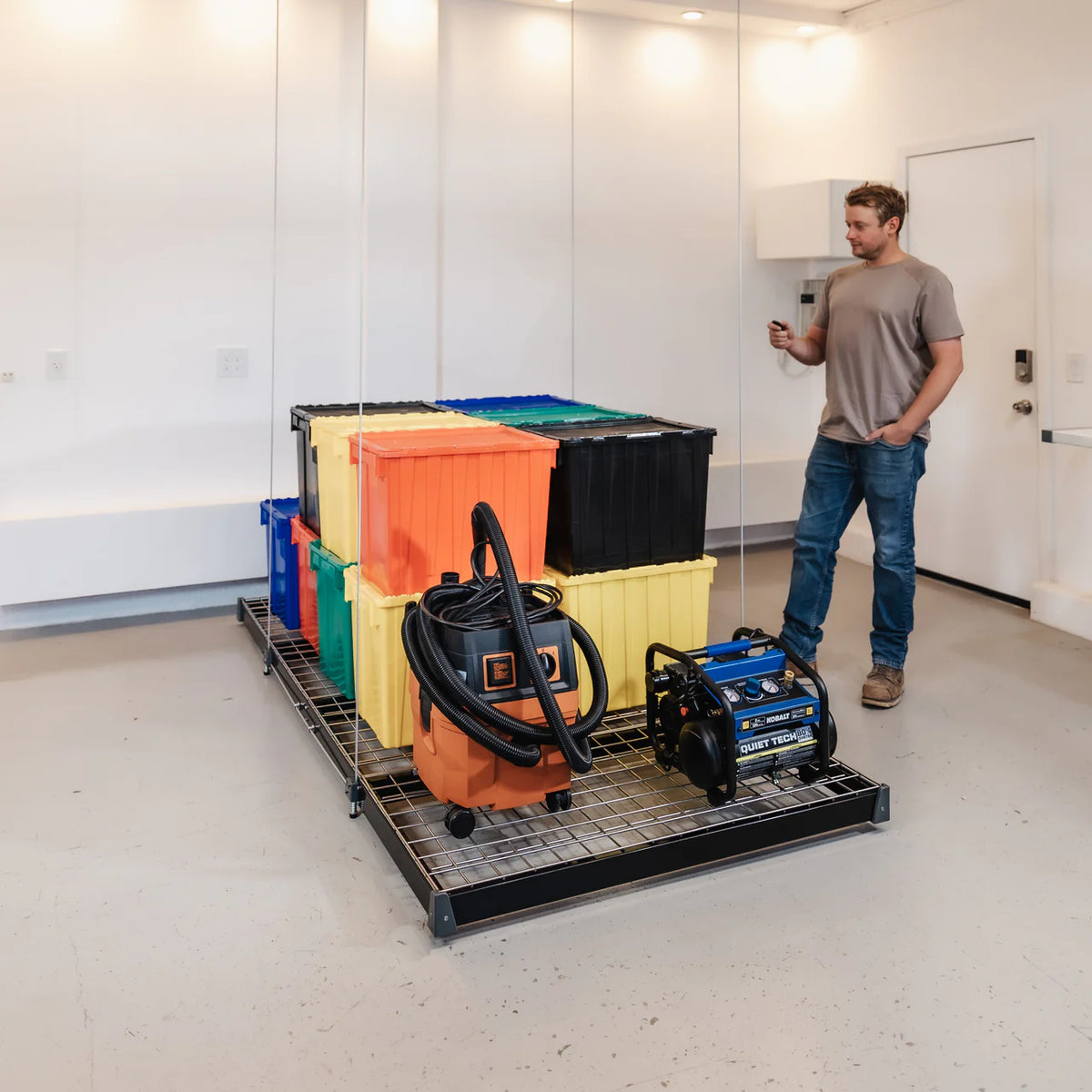

The Auxx-Lift comes with an easy to use wireless remote control allowing you to lower/raise your garage ceiling storage rack from a safe distance.
