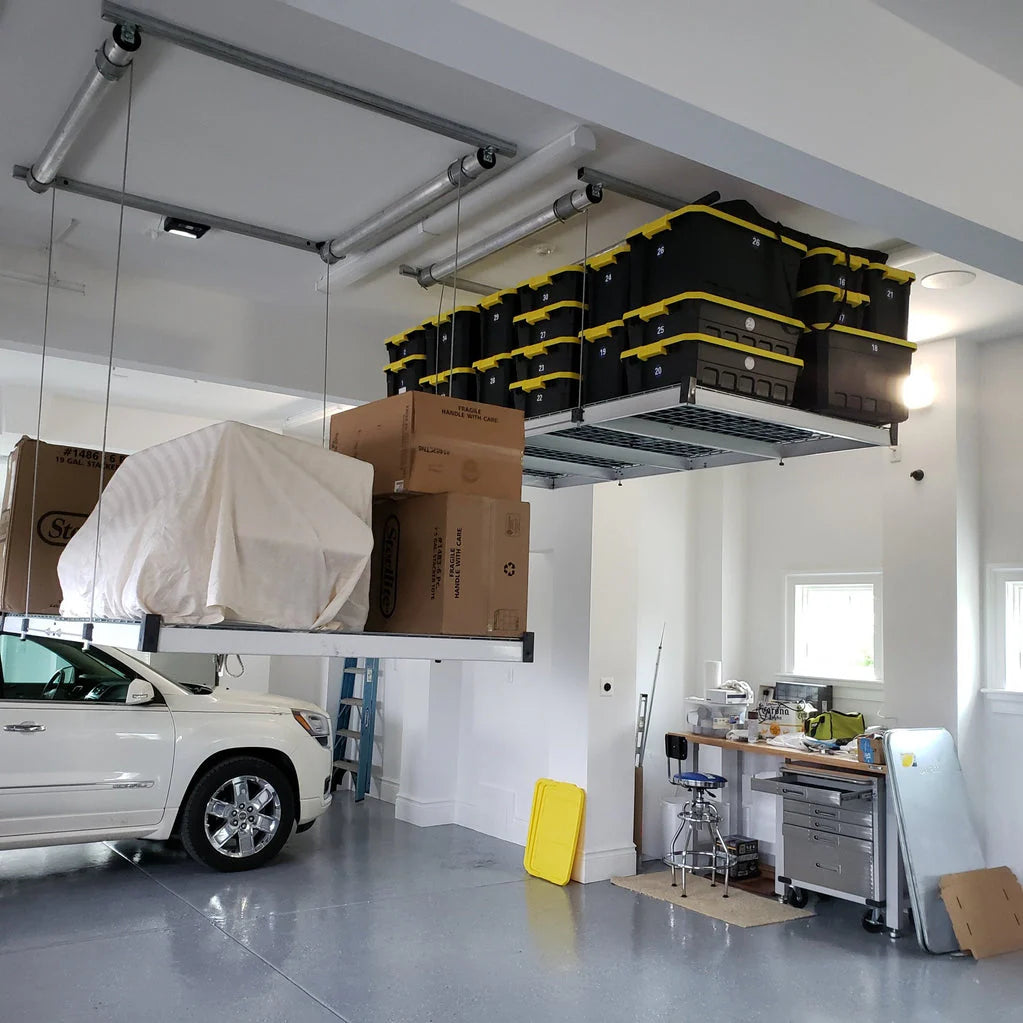

Auxx-Lift Storage Lift, 800 lbs

Description

Push-button storage power — no ladder, no hassle

• Lift up to 800 lbs (4x4 version)
• Steel aircraft cables
• Assembled in USA – Uses SPAX® Fasteners
• Easy installation
• Built-in safety features – the only lift tested to UL-Standards

Product details

General specs

• Model: Auxx-Lift 1800
• Lifting Capacity: Up to 800 lbs
• Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
• Min. stored height: 8 in
• Speed: Avg. 30sec for 9' ceilings

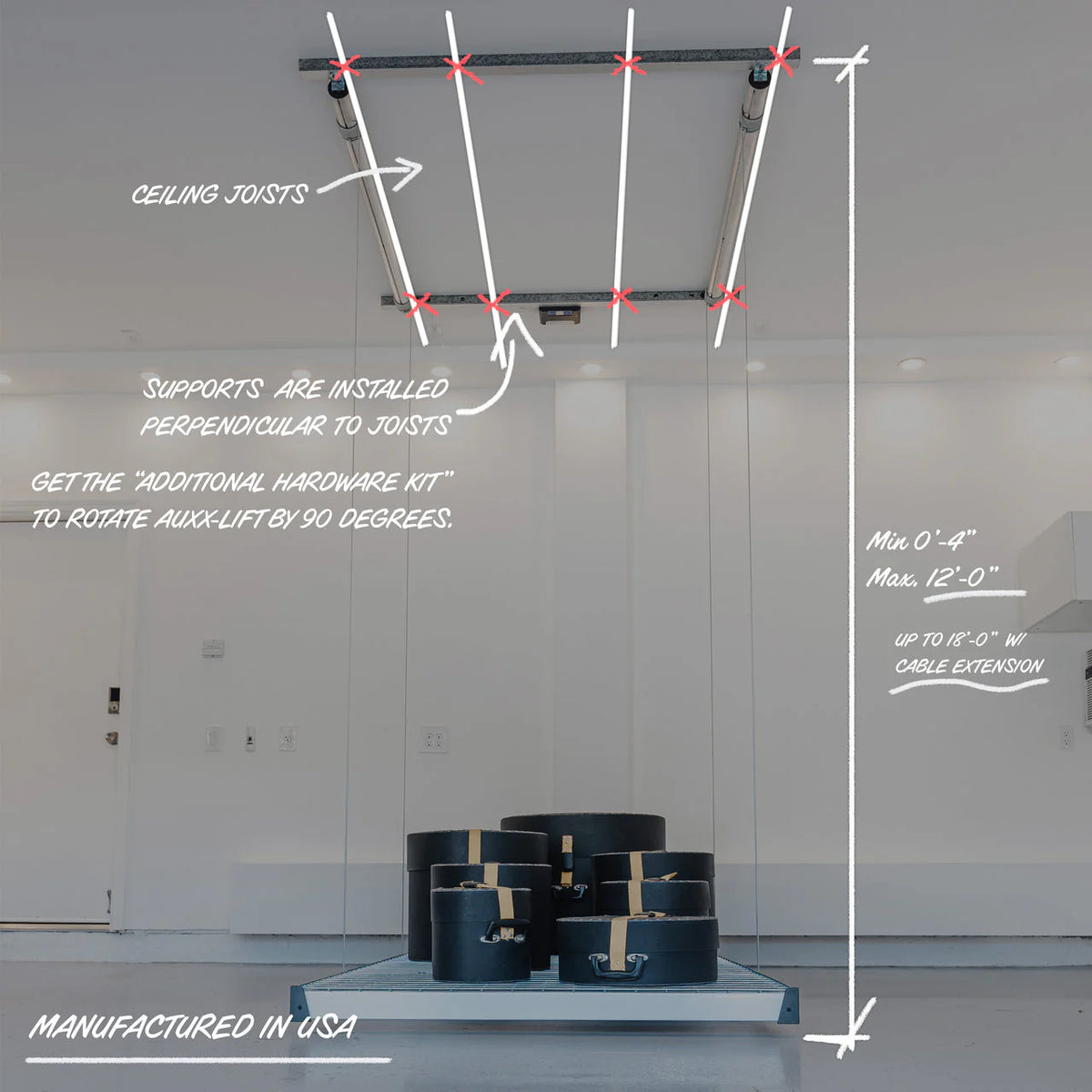

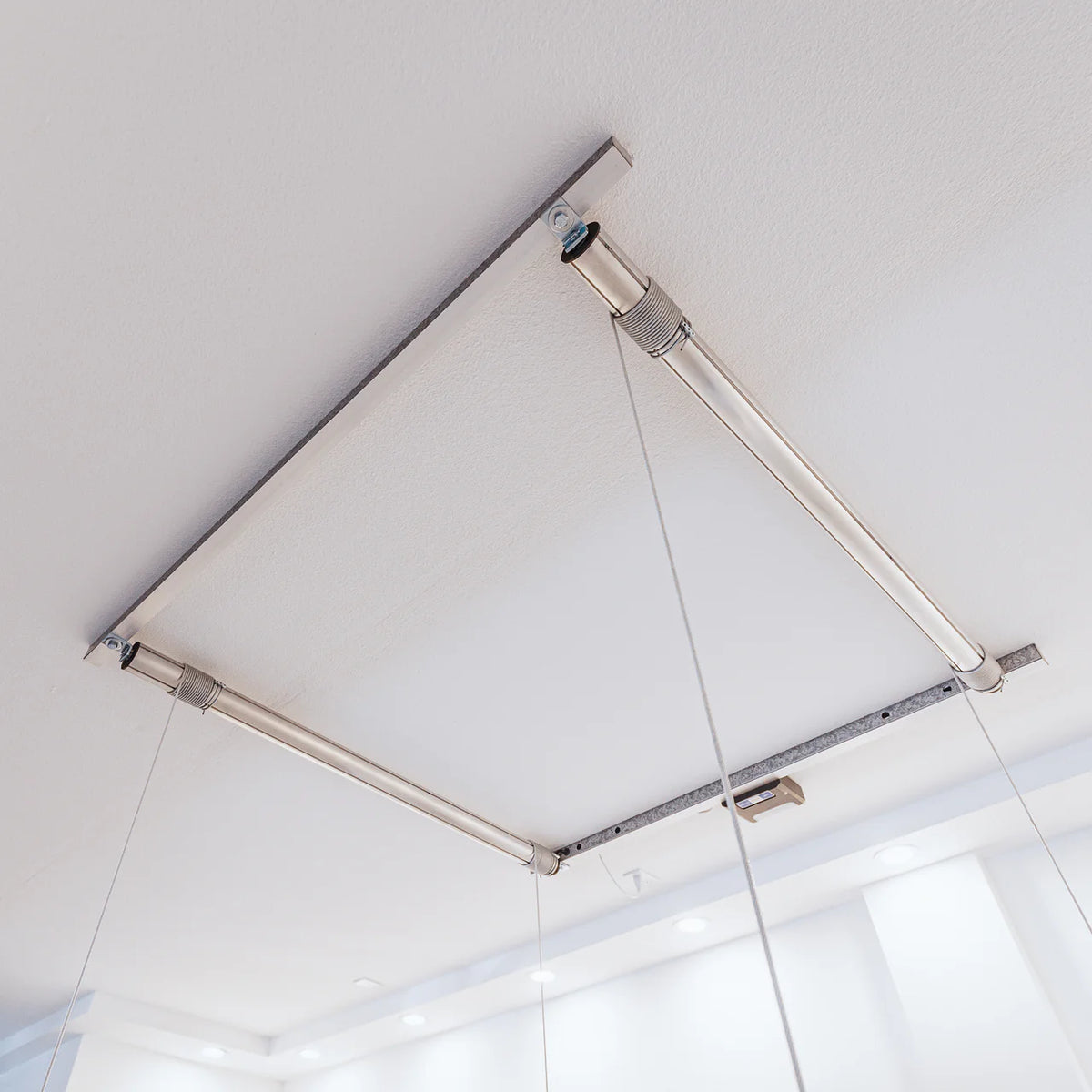

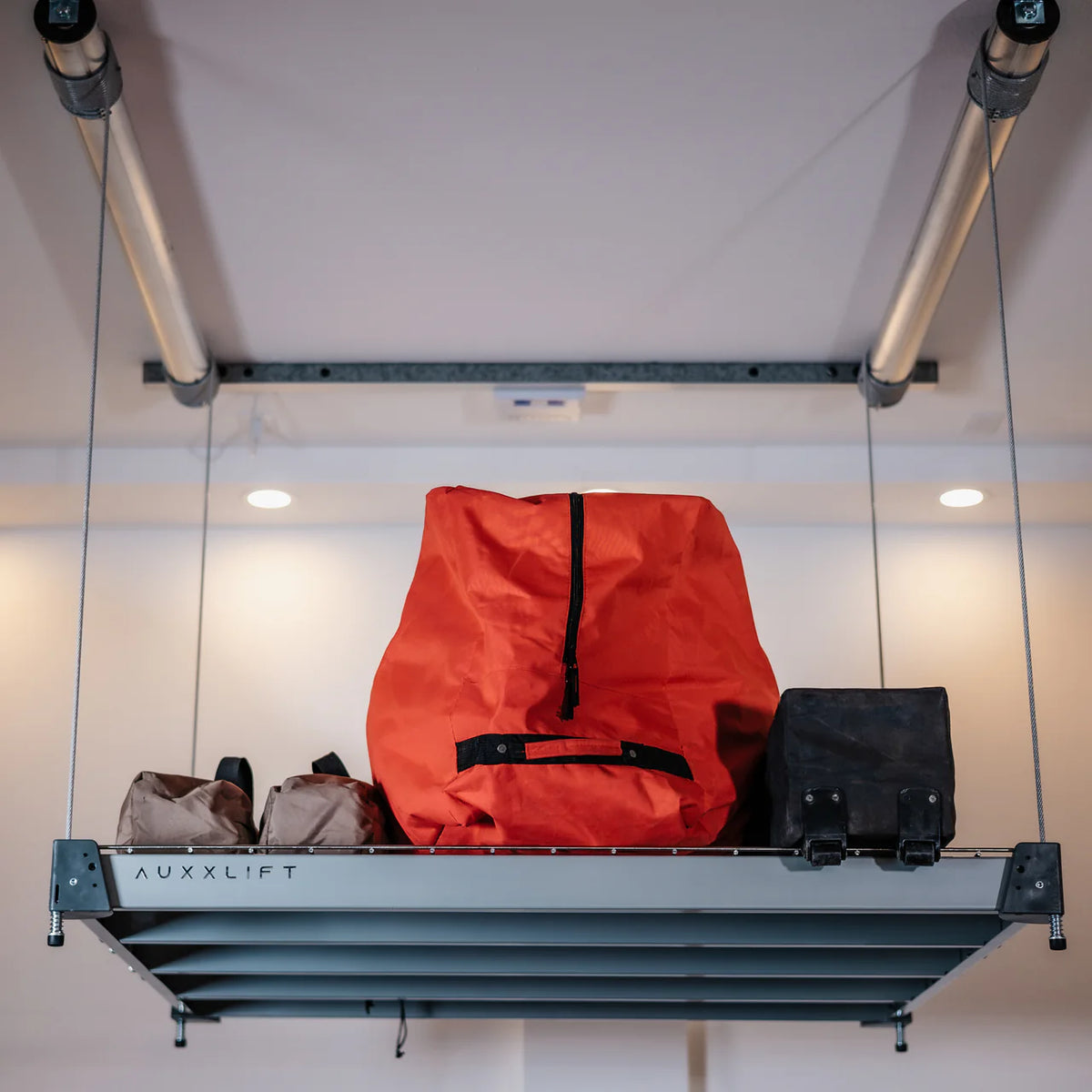

Ceiling Support

• Type: (2) 1 5/8" x 60" strut channel
• Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
• Mounting Area: 5' x 5' over 3 joists/rafters

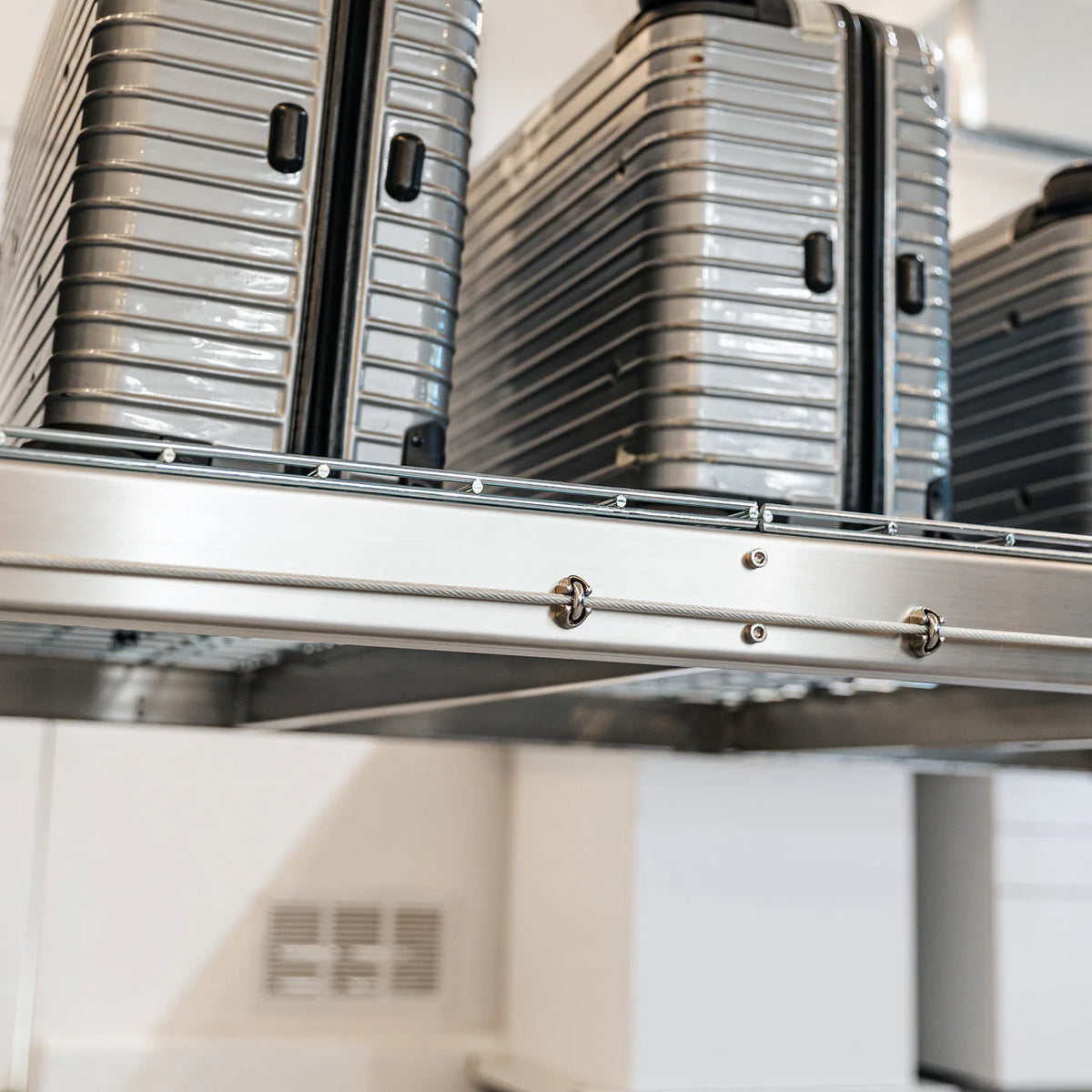

• Cable: 1/4” Vinyl-coated Steel 7x19
• Cable Strength: 7,000 lbs

Operating Requirements

• Switch Voltage: 110V / 120V
• Transmitter: 433.92 MHz
• Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
• Min. circuit size: 15 amp (Standard household)

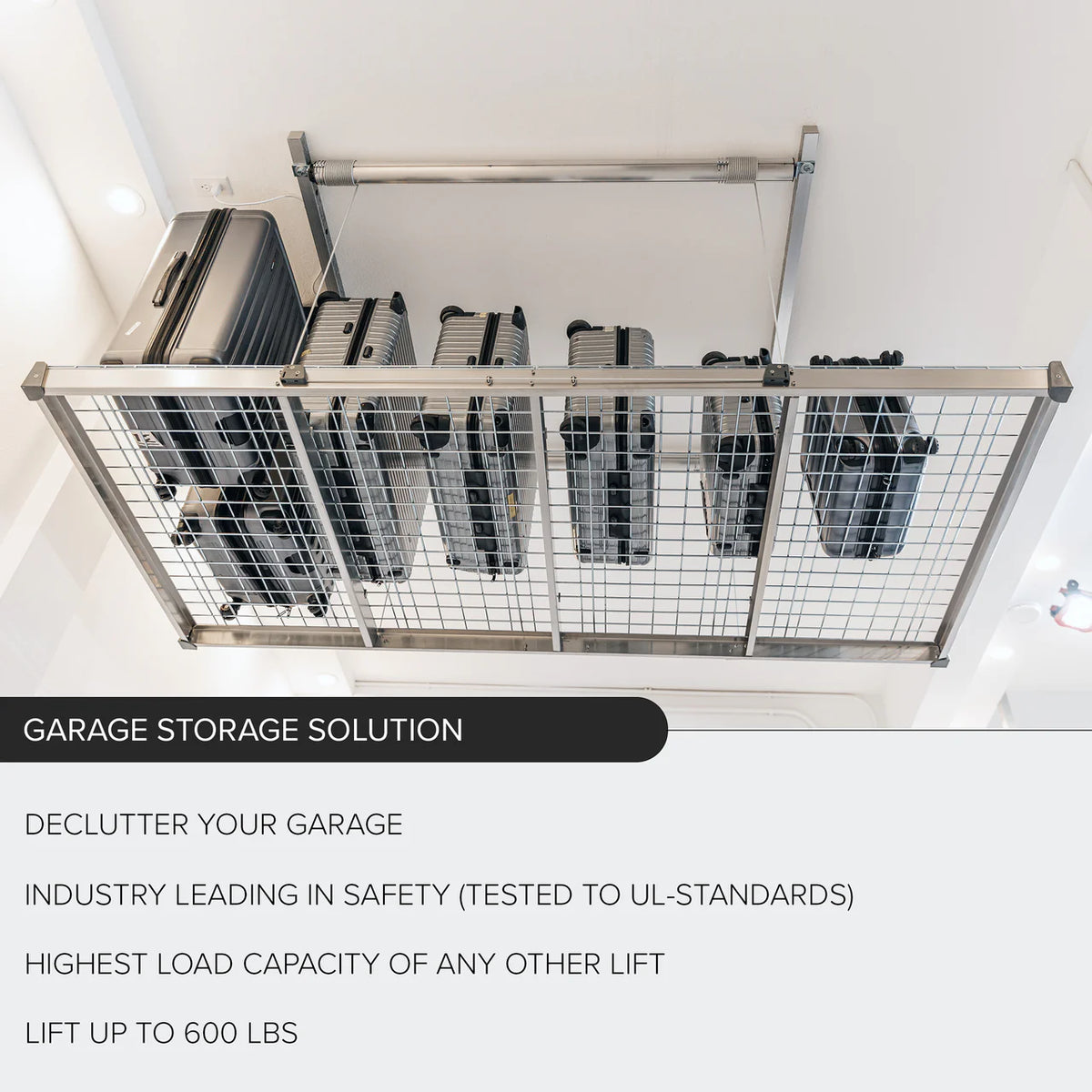

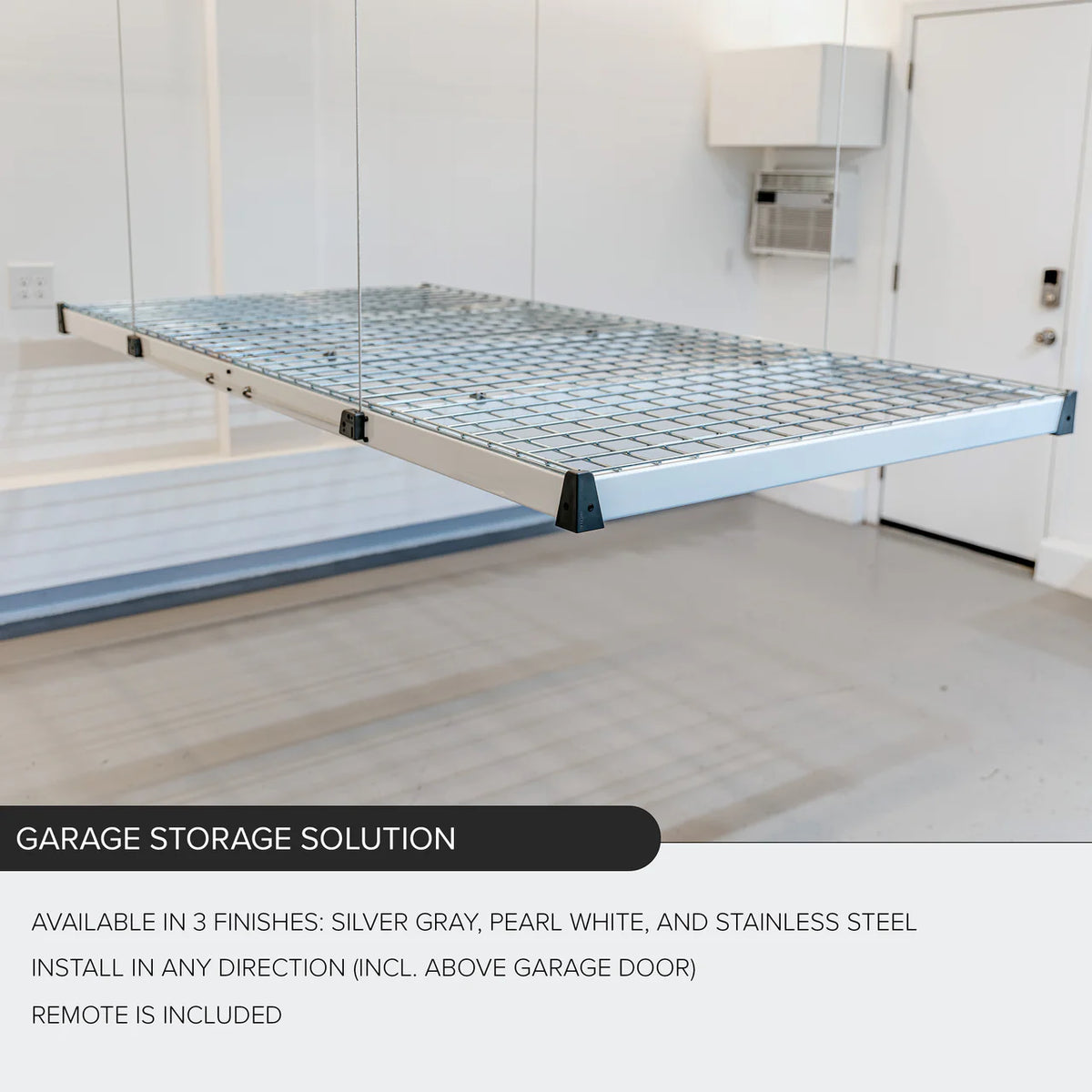

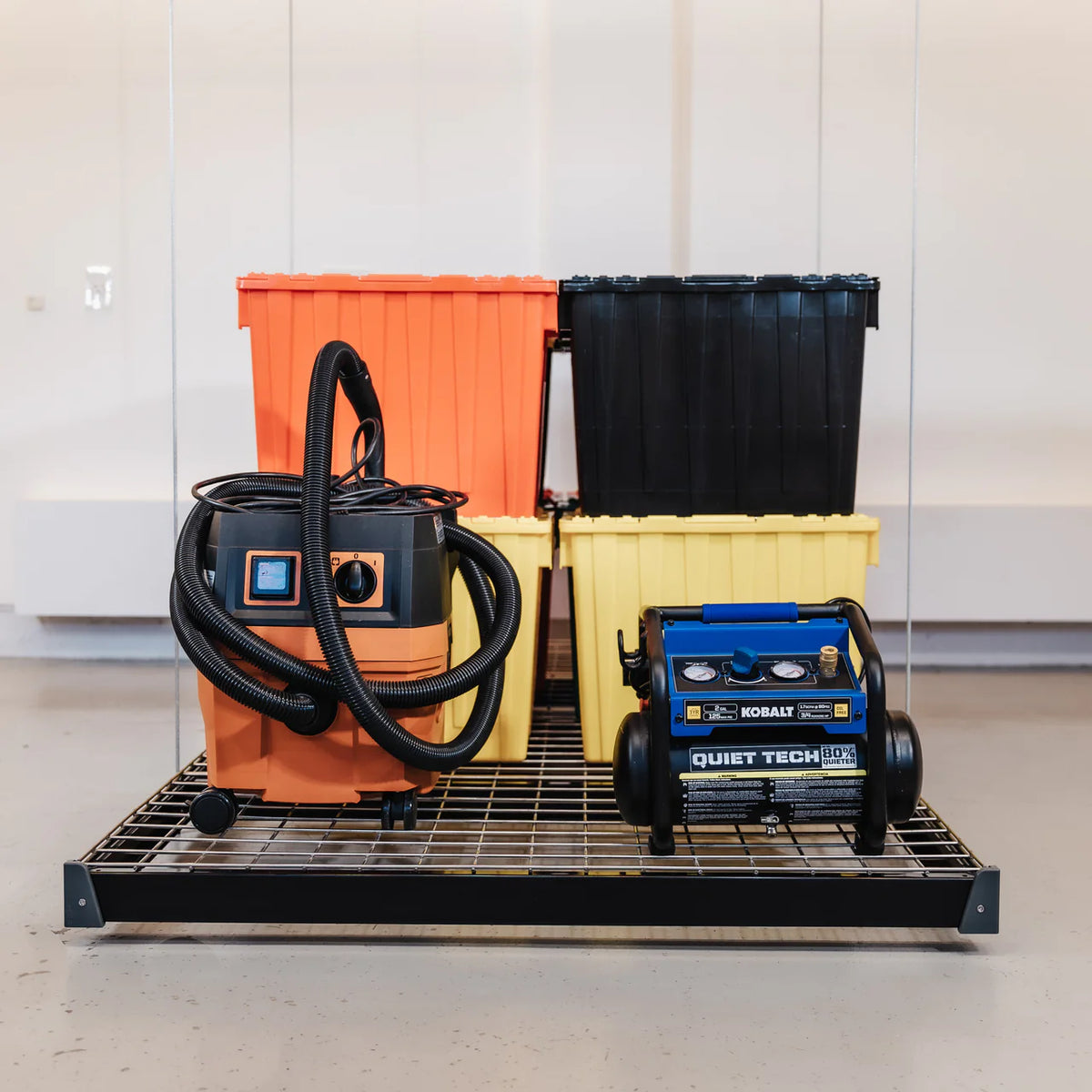

Platform Specs

• Thickness: 2.5 inches
• Support Frame: C-Channels (15gauge)
• Face material: 3 x 3 galv. Wire Mesh (4gauge)

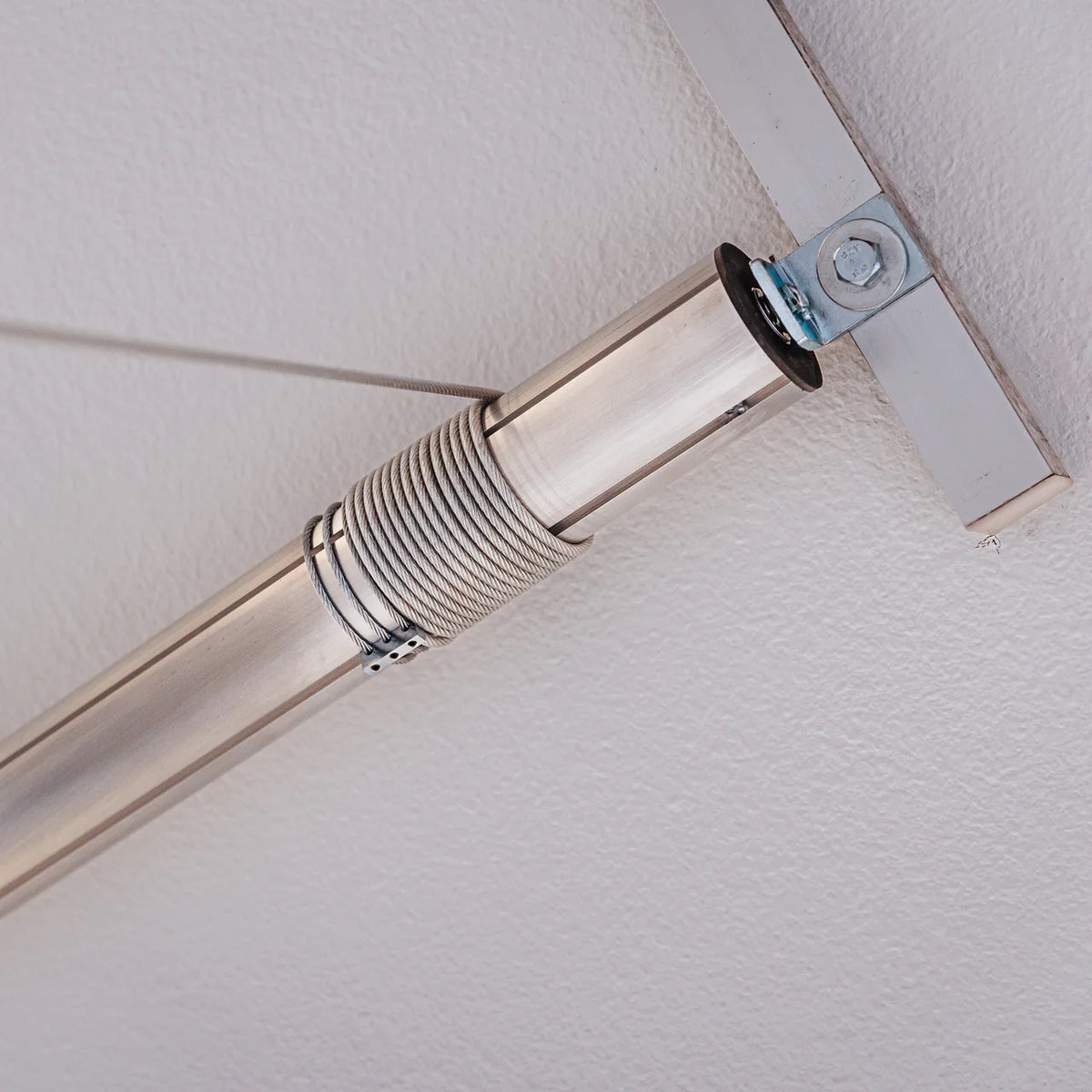

Motors

• Type: IP44 (T-Motor)
• Rated Power: 680 W
• Rated Current: 6.0 A
• Voltage / Phase: 100-120V AC / Single
• Tube Diameter: 85mm (3-3/8 in)
• Motor speed: 11 rpm
• Duty Cycle @ Max. Capacity: 3 min on, 15 min off

Size and Weight

• Dimensions: 4ft x 4ft
• Weight: 128 lbs
• Color Silver Gray

What's in the box

• 2 Motors
• Controller
• Remote Control
• 2 C-Strut Channels
• Platform
• Mounting Hardware

Industry-leading

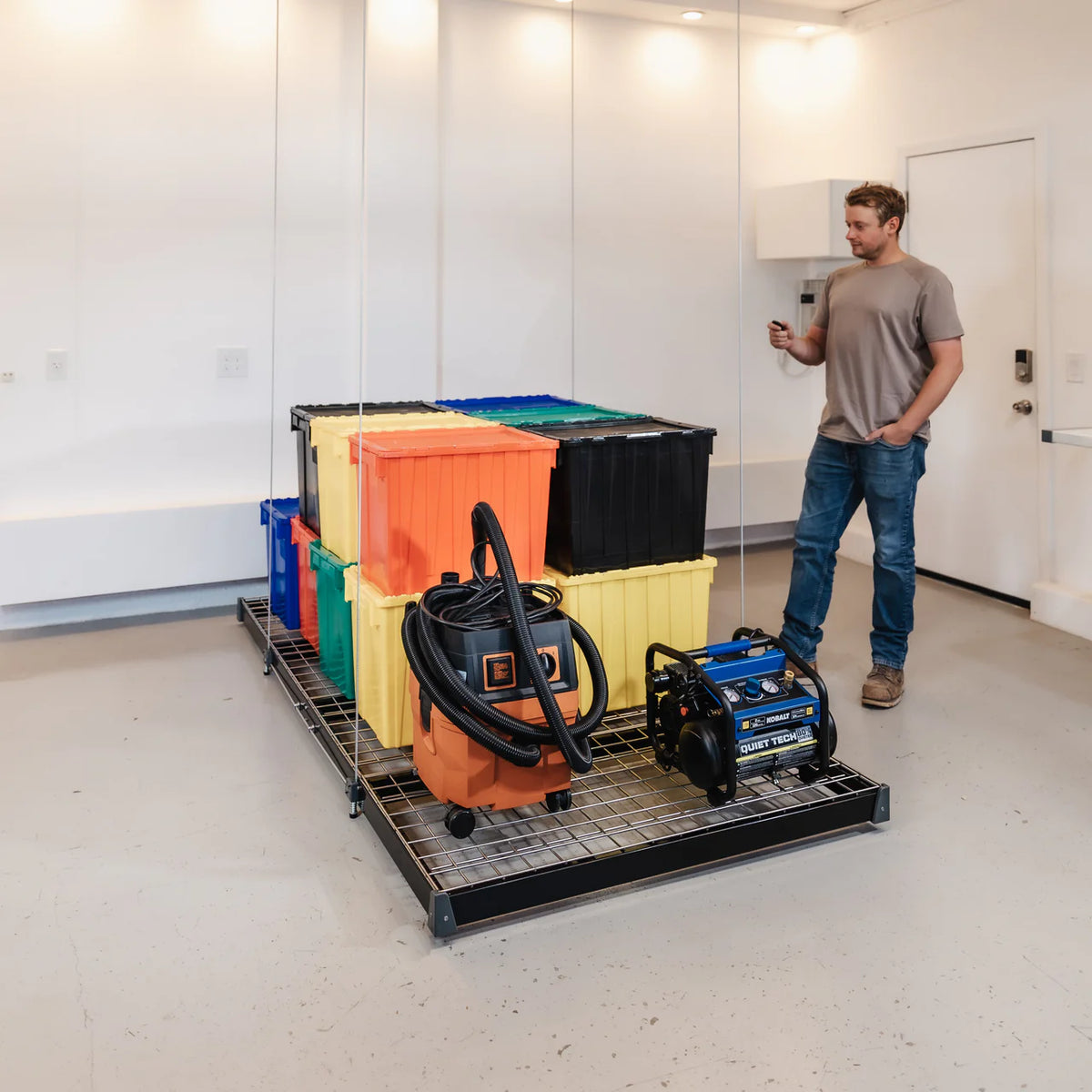

Wirelessly Controlled

The Auxx-Lift comes with an easy to use wireless remote control allowing you to lower/raise your garage ceiling storage rack from a safe distance.



• 1

  Auto High & Low Points. Programmable stopping points allow you to set high and low point parameters, prevent your items hitting the ceiling or floor.

• 2

  Auto-Stop. Lift will automatically stop in scenarios where remote control loses connection or runs out of battery.

• 3

  Active-Press. Button to move platform needs to be continuously pressed to avoid accidental damage or injury.
