Description

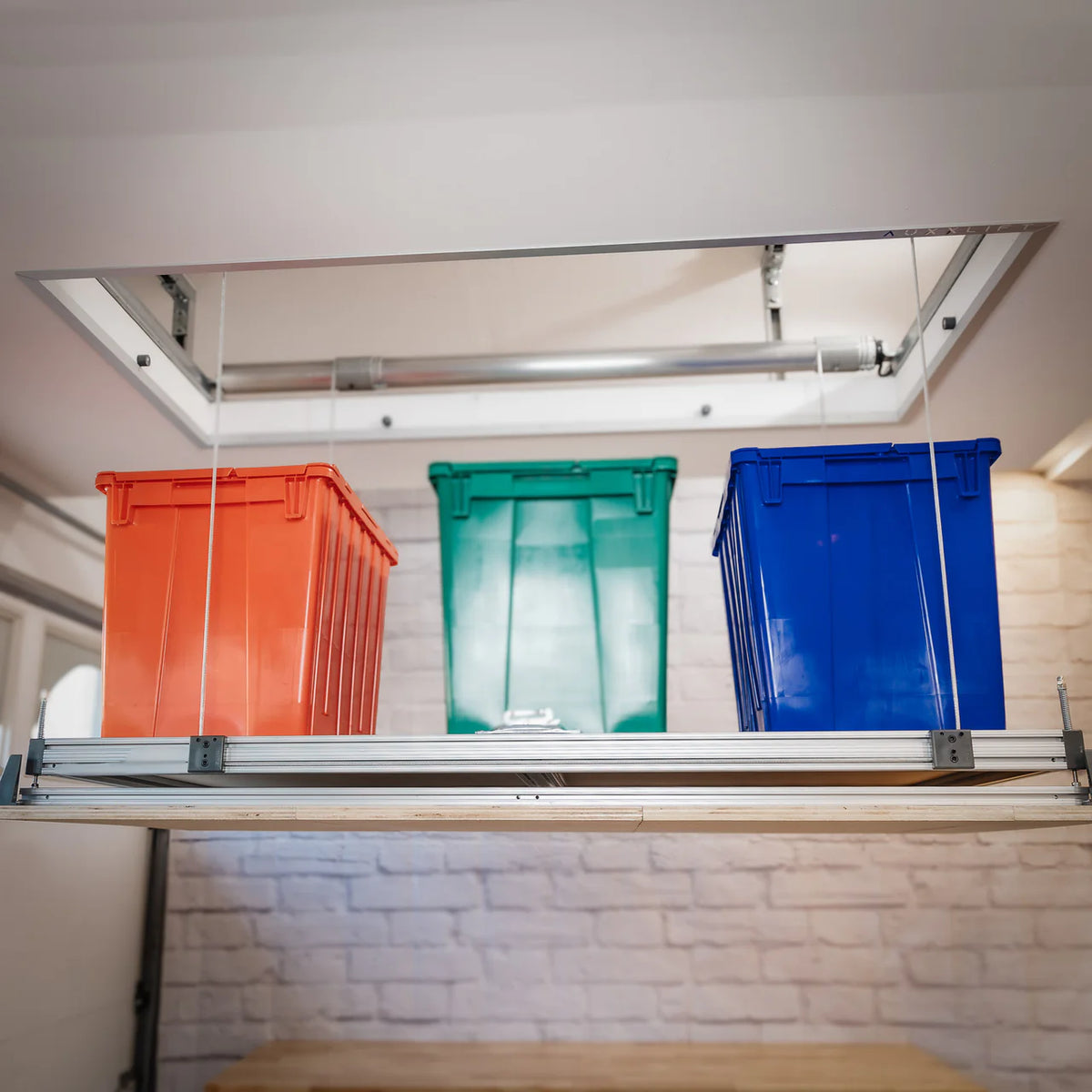

Attic Storage Lift – Motorized Vertical Platform
Redefining vertical storage — power, clarity, and control at the push of a button.
- Seamless Install: Includes premium-grade sealing hardware
- Minimal attic footprint: Fully adjustable to all joist configurations
- Engineered and Manufactured in the USA for elite safety and long-term durability

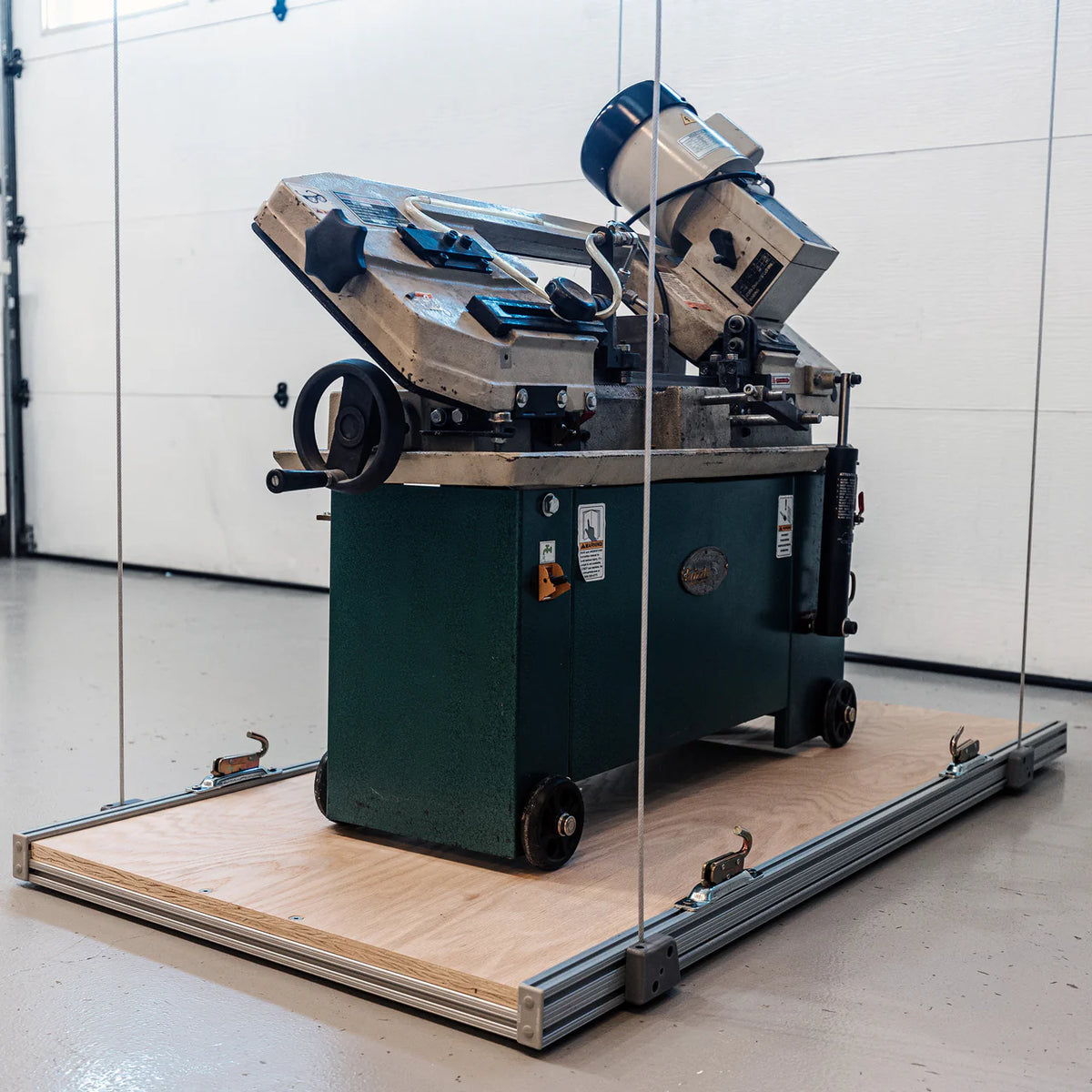

- Lifts up to 400 lbs: Smooth operation, maximum efficiency
Note: Ceiling trim not included
Product details
General specs
- Model: Attic-Lift 1400
- Lifting Capacity: Up to 400 lbs
- Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
- Speed: Avg. 30 sec for 9' ceilings
Size and Weight

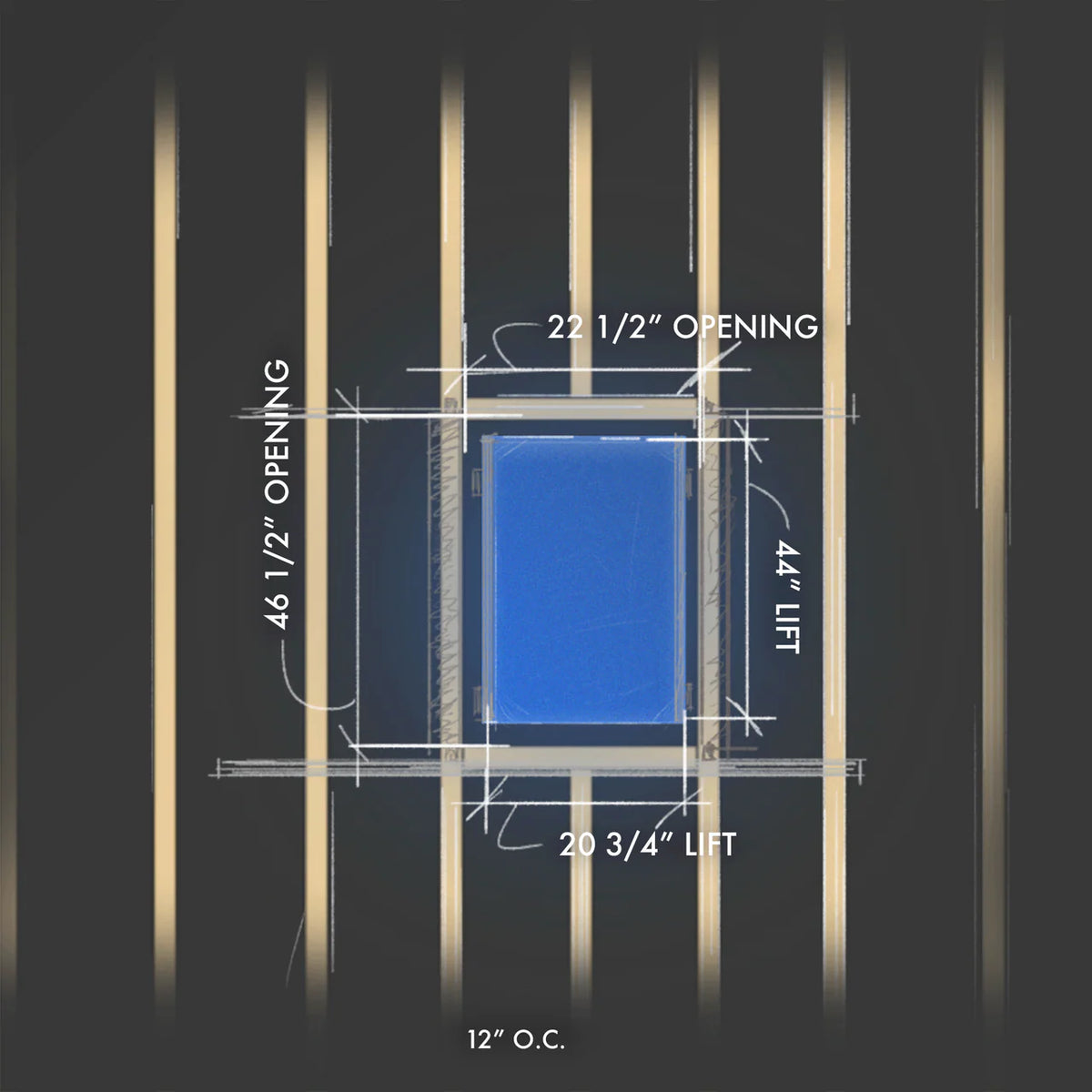

- Platform Size: 20.75 in x 44 in
- Ceiling Cutout Size: 22.5 in x 46.5 in
- Platform Weight (Empty): 26 lbs
- Ceiling Support Weight (Motors, etc): 60 lbs
Ceiling Support
- Type: (2) 1 5/8" x 60" strut channel
- Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
- Cable: 1/8” Vinyl-coated Steel 7x19
- Cable Strength: 2,000 lbs
Operating Requirements
- Switch Voltage: 110V / 120V

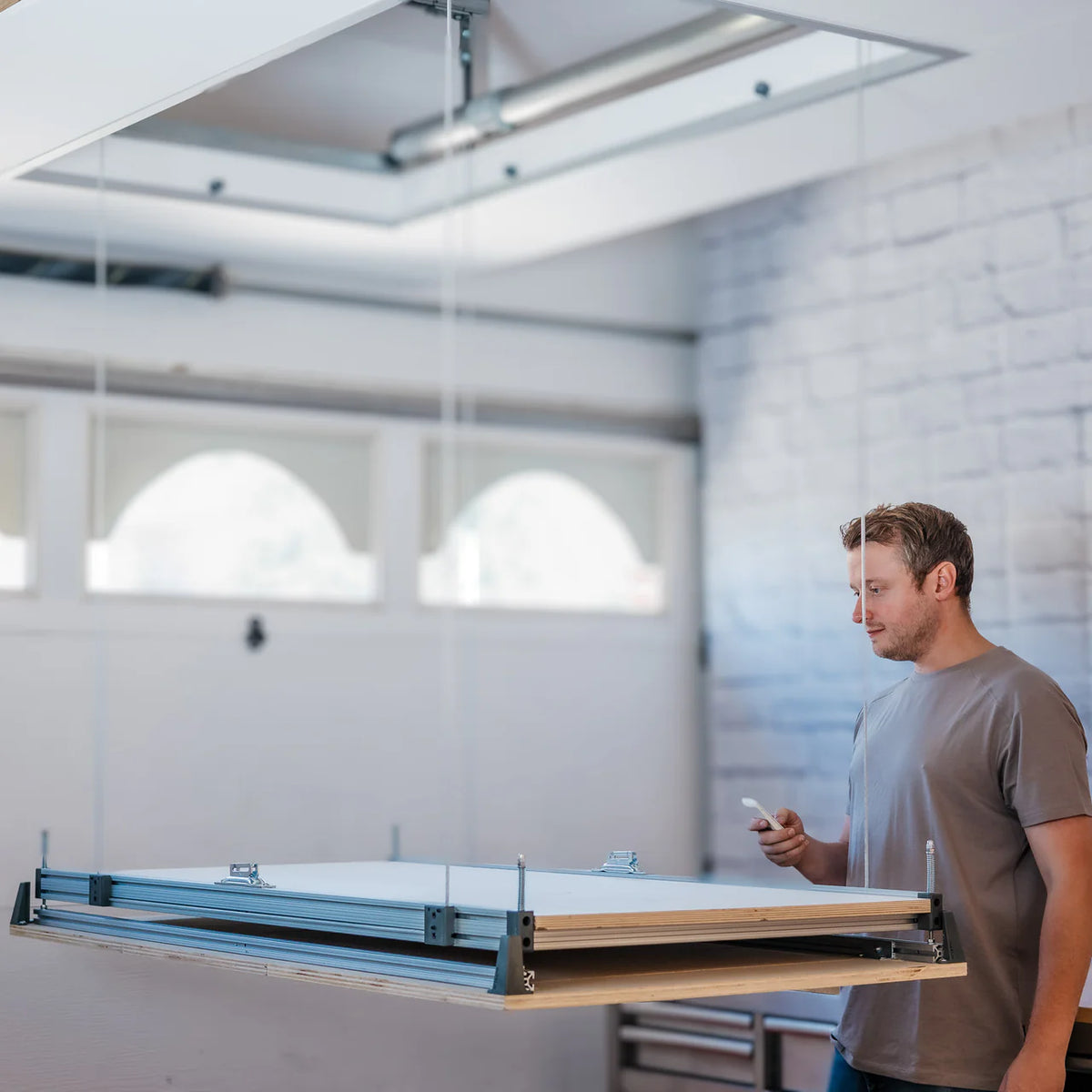

- Transmitter: 433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp

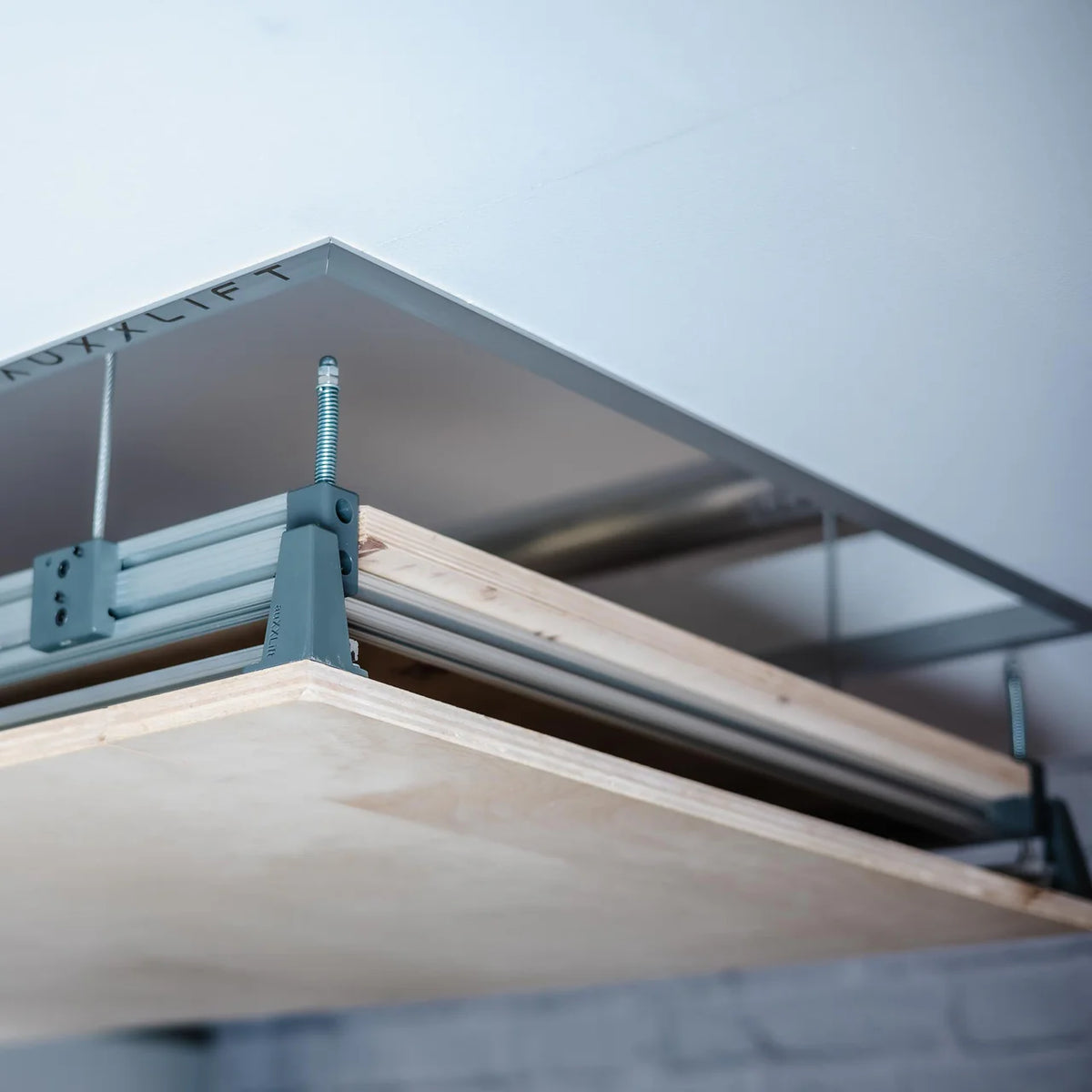

Platform Specs
- Frame: T-slotted framing rail
- Material: 6105-T5 aluminum alloy
- Decking: 3/4 in thick Oak Plywood (5-ply)

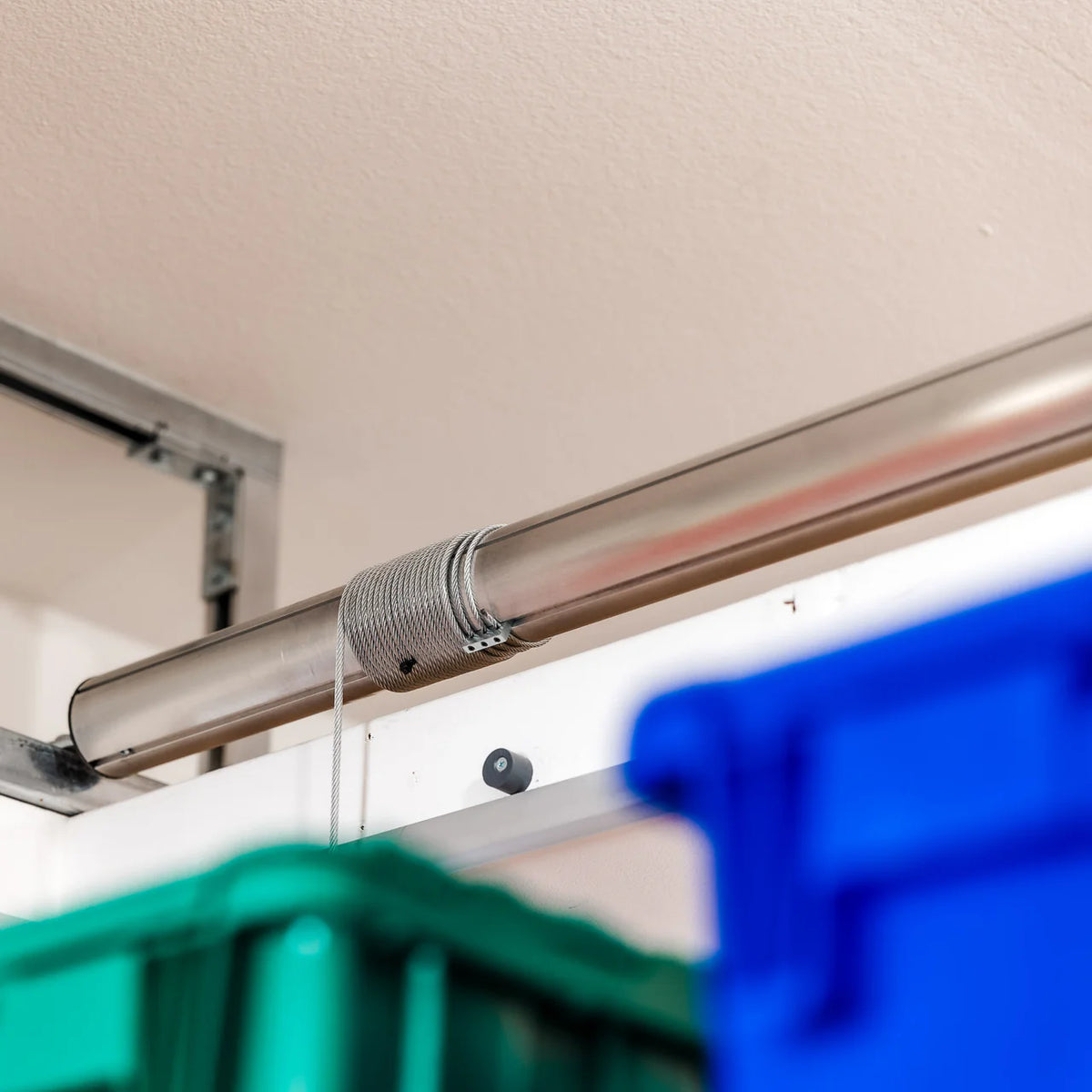

Motors
- Type: IP44 (T-Motor)
- Rated Power: 235 W
- Rated Current: 2.2 A
- Voltage / Phase: 100-120V AC / Single
- Tube Diameter: 70mm (2-3/4 in)
- Motor speed: 13 rpm
- Duty Cycle @ Max. Capacity: 3 min on, 15 min off
